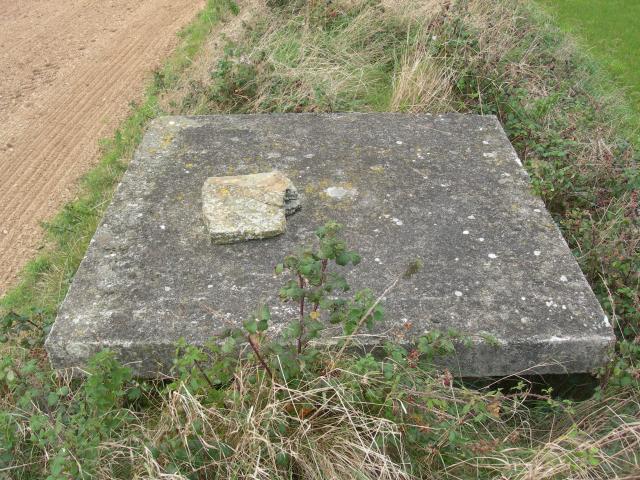

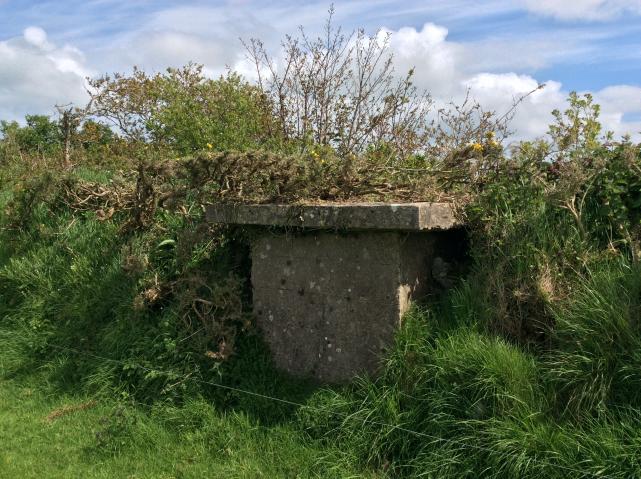

A platform bolt is a type of type of triangulation mark. It comprises a large concrete platform with a centrally-placed bolt. Sample dimensions are: bolt: 2in dia, platform: 6ft square, plinth: 3ft high and 4 ft square. This may often be positioned in a hedgeline or raised field boundary. 24 instances are recorded in T:UK, located in North Wales and South West England. In OSGB36 the mark is classified as a bolt but qualified as 'bolt in platform' in the comment field. Platform Bolts were re-used in the passive station era. All marks are of order 3.
| T:UK | Station name | Order | Computed | Block |
|---|---|---|---|---|
| TP8098 | Cae Hir | 3 | 1956 | SH62 |
| TP8517 | Gwydd Gwion | 3 | 1956 | SH62 |
| TP7660 | Corlan-Fraith | 3 | 1956 | SH62 |
| TP8092 | Garn Bodvean | 3 | 1956 | SH62 |
| TP8229 | Peppershill | 3 | 1949 | SS30 |
| TP7643 | Carcade Farm | 3 | 1955 | SX06 |
| TP7644 | Treore | 3 | 1955 | SX06 |
| TP7647 | Middle Taphouse | 3 | 1955 | SX06 |
| TP7534 | Burniere Farm | 3 | 1955 | SX06 |
| TP7645 | Grey Mare Hill | 3 | 1955 | SX06 |
| TP7492 | Castle Canyke | 3 | 1955 | SX06 |
| TP7646 | Beacon Hill | 3 | 1955 | SX06 |
| TP7819 | Trevollard | 3 | 1955 | SX06 |
| TP8077 | Torfrey Hill | 3 | 1955 | SX06 |
| TP7684 | Trenarren | 3 | 1955 | SX06 |
| TP7533 | Hendra Farm | 3 | 1955 | SX06 |
| TP7490 | Polstain Farm | 3 | 1955 | SX06 |
| TP8098 | Cae Hir | 3 | 1956 | SH62 |
| TP8517 | Gwydd Gwion | 3 | 1956 | SH62 |
| TP7660 | Corlan-Fraith | 3 | 1956 | SH62 |
| TP8092 | Garn Bodvean | 3 | 1956 | SH62 |
| TP8229 | Peppershill | 3 | 1949 | SS30 |
| TP7643 | Carcade Farm | 3 | 1955 | SX06 |
| TP7644 | Treore | 3 | 1955 | SX06 |
| TP7647 | Middle Taphouse | 3 | 1955 | SX06 |
| TP7534 | Burniere Farm | 3 | 1955 | SX06 |
| TP7645 | Grey Mare Hill | 3 | 1955 | SX06 |
| TP7492 | Castle Canyke | 3 | 1955 | SX06 |
| TP7646 | Beacon Hill | 3 | 1955 | SX06 |
| TP7819 | Trevollard | 3 | 1955 | SX06 |
| TP8077 | Torfrey Hill | 3 | 1955 | SX06 |
| TP7684 | Trenarren | 3 | 1955 | SX06 |
| TP7533 | Hendra Farm | 3 | 1955 | SX06 |
| TP7490 | Polstain Farm | 3 | 1955 | SX06 |
| TP7682 | Goviley Major | 3 | 1955 | SX06 |
| TP7686 | Polwhele Farm | 3 | 1955 | SX06 |
| TP7685 | Camerance Farm | 3 | 1955 | SW63 |
| TP8075 | Four Acres | 3 | 1955 | SW63 |
| TP8073 | New Downs | 3 | 1955 | SW63 |
| TP8074 | Wheal Mount | 3 | 1955 | SW63 |
| TP8072 | Hingey | 3 | 1955 | SW63 |
